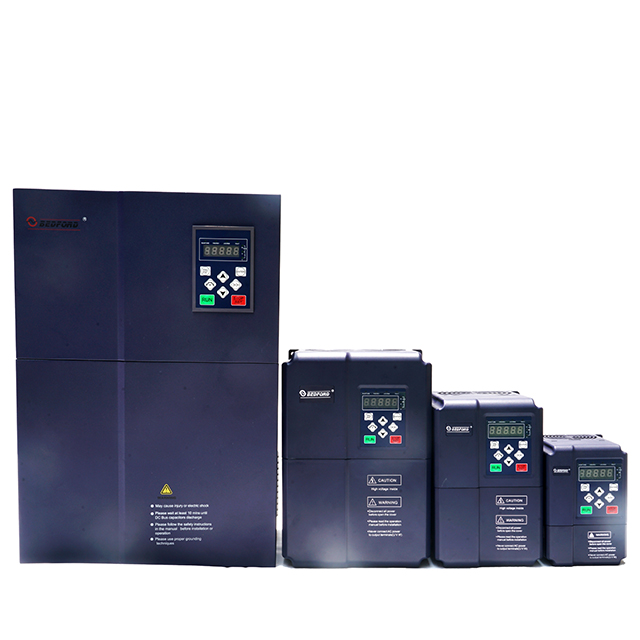

Product description
The B503DSL series products are suitable for solar photovoltaic water pump systems and are positioned in the environmentally friendly and economical photovoltaic product market, replacing electricity storage with water storage without battery components. The DC generated by the solar modules is input to the photovoltaic water pump controller, converted into AC, and directly drives various water pumps.
Features
This product has the characteristics of high quality, multi-function, low noise, and strong versatility:
Product advantages
• Adopt advanced MPPT technology to give full play to the power generation efficiency of the solar cell array.
• Automatic adjustment of motor speed and water output of the pump with the change of sunlight illumination.
• Automatic dormancy at high water level of the reservoir and automatic restart at low water level to realize automatic water level control.
• It prevents the pump from pumping empty when the water source is dry.
• Automatic dormancy when the light is weak (e.g., sunset) and withdrawal from dormancy when the light is strong (e.g., sunrise).
• With a variety of protection functions to improve the reliability of the system work. Specially designed for water supply users, adaptable to various occasions application, easy to operate.
Product parameters
Output 3-phase AC 380V
Maximum input DC voltage 800VDC
Recommended input DC voltage range 420~720VDC
Recommended input operating voltage 540VDC
Number of input channels 1
Rated output voltage 3AC 380V
Output frequency range 0~600Hz
Cooling method air-cooled
When the altitude exceeds 1000m, please derate 1% every 100m.
Standard CE
Output 3-phase AC 220V
Maximum input DC voltage 400VDC
Recommended DC input voltage range 220~370VDC
Recommended input working voltage 305VDC
Number of input channels 1
Rated output voltage 3AC 220V
Output frequency range 0~600Hz
Cooling method air-cooled
When the altitude exceeds 1000m, please derate 1% every 100m.
Standard CE
Size of 0.75~15KW model Size of 18.5~110KW model
Size of 132-315KW model (with and without pedestal)
model (KW) | size | A(mm) | B(mm) | H(mm) | W(mm) | D(mm) | Installation aperture(mm) |
installation size | Dimension | ||||||
0.75~2.2 | B | 110.0 | 169.6 | 179.6 | 120.1 | 150.3 | 4.0 |
4~5.5 | C | 147.4 | 236 | 250 | 160 | 194.5 | 5.0 |
7.5~15 | D | 205.6 | 303.6 | 320 | 220 | 193.5 | 6.0 |
18.5~30 | E | 175 | 455 | 472 | 295 | 222 | 6.5 |
37~55 | F | 230 | 564.5 | 580 | 380 | 270 | 7.0 |
75~110 | G | 320 | 738.5 | 755 | 465 | 330 | 9.0 |
132~185 | H (without pedestal) | 270 | 1233 | 1275 | 490 | 395 | 13.0 |
H (with pedestal) | 1490 | 490 | 395 | ||||
200~315 | I(without pedestal) | 500 | 1324 | 1358 | 750 | 402 | 12.5 |
I (with pedestal) | 1670 | 750 | 402 |
Please contact us for other sizes.
Product description
The B503DSL series products are suitable for solar photovoltaic water pump systems and are positioned in the environmentally friendly and economical photovoltaic product market, replacing electricity storage with water storage without battery components. The DC generated by the solar modules is input to the photovoltaic water pump controller, converted into AC, and directly drives various water pumps.
Features
This product has the characteristics of high quality, multi-function, low noise, and strong versatility:
Product advantages
• Adopt advanced MPPT technology to give full play to the power generation efficiency of the solar cell array.
• Automatic adjustment of motor speed and water output of the pump with the change of sunlight illumination.
• Automatic dormancy at high water level of the reservoir and automatic restart at low water level to realize automatic water level control.
• It prevents the pump from pumping empty when the water source is dry.
• Automatic dormancy when the light is weak (e.g., sunset) and withdrawal from dormancy when the light is strong (e.g., sunrise).
• With a variety of protection functions to improve the reliability of the system work. Specially designed for water supply users, adaptable to various occasions application, easy to operate.
Product parameters
Output 3-phase AC 380V
Maximum input DC voltage 800VDC
Recommended input DC voltage range 420~720VDC
Recommended input operating voltage 540VDC
Number of input channels 1
Rated output voltage 3AC 380V
Output frequency range 0~600Hz
Cooling method air-cooled
When the altitude exceeds 1000m, please derate 1% every 100m.
Standard CE
Output 3-phase AC 220V
Maximum input DC voltage 400VDC
Recommended DC input voltage range 220~370VDC
Recommended input working voltage 305VDC
Number of input channels 1
Rated output voltage 3AC 220V
Output frequency range 0~600Hz
Cooling method air-cooled
When the altitude exceeds 1000m, please derate 1% every 100m.
Standard CE
Size of 0.75~15KW model Size of 18.5~110KW model
Size of 132-315KW model (with and without pedestal)
model (KW) | size | A(mm) | B(mm) | H(mm) | W(mm) | D(mm) | Installation aperture(mm) |
installation size | Dimension | ||||||
0.75~2.2 | B | 110.0 | 169.6 | 179.6 | 120.1 | 150.3 | 4.0 |
4~5.5 | C | 147.4 | 236 | 250 | 160 | 194.5 | 5.0 |
7.5~15 | D | 205.6 | 303.6 | 320 | 220 | 193.5 | 6.0 |
18.5~30 | E | 175 | 455 | 472 | 295 | 222 | 6.5 |
37~55 | F | 230 | 564.5 | 580 | 380 | 270 | 7.0 |
75~110 | G | 320 | 738.5 | 755 | 465 | 330 | 9.0 |
132~185 | H (without pedestal) | 270 | 1233 | 1275 | 490 | 395 | 13.0 |
H (with pedestal) | 1490 | 490 | 395 | ||||
200~315 | I(without pedestal) | 500 | 1324 | 1358 | 750 | 402 | 12.5 |
I (with pedestal) | 1670 | 750 | 402 |
Please contact us for other sizes.
Bedford water supply equipment is widely used in high-rise residential buildings, villas, schools, hospitals, large communities, air source heat pump hot and cold water systems, solar water heating systems, water treatment, energy-saving water supply systems for buildings, and other occasions.
