Product description
WLD190SP series products are integrated single-pump economical intelligent controllers specially designed for swimming pool pumps. They are suitable for general household swimming pool circulating water pumps and realize the pump speed control function.
Feature
1.V/F Control
2.Designed specifically for swimming pool water users, easy to operate
3.Three-stage gears are preset, and users can also modify the speed by themselves
Winter: 1200~1650rpm (initial value is 1400rpm)
Saving: 1700~2400rpm (initial value is 2000rpm)
Backwash: 2450~2900rpm (initial value is 2900rpm)
4.Monitoring temperature setting speed reduction strategy: when the module temperature is 75°C, it enters the high temperature warning state; when the temperature drops to 60°C, the high temperature warning state is released. In the high temperature warning state, reduce speed operation according to a certain rule
5.In any state, when the temperature of the module is detected to be 40°C, the external fan starts immediately; when the temperature of the module drops below 35°C, the fan stops
6.Multiple fault protection functions: over current, over voltage, under voltage, over temperature, phase failure protection
Product parameters
Model No. | Input Voltage（V） | Input Current（A） | Rated Output Current（A） | Motor Power（kW） |
WLD190SP-2001-1 | Single phase：220V±15%， 50/60Hz | 8.2 | 5.3 | 0.75 |
WLD190SP-20015-1 | 14.2 | 6.5 | 1.1 | |
WLD190SP-2002-1 | 23.0 | 9.6 | 1.5 | |
WLD190SP-2001 | Single phase：220V±15%， 50/60Hz | 8.2 | 4.5 | 0.75 |
WLD190SP-2002 | 14.2 | 7.0 | 1.5 | |
WLD190SP-2003 | 23.0 | 10.0 | 2.2 |

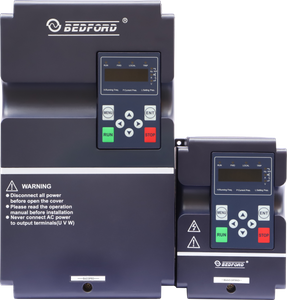

Product Display
WLD190SP
Company Contact
Guangzhou Bedford Electrical Equipment Co., Ltd.
Address: 1st Floor Building C, No.2, Taowan Industry Zone, Liwan District, Guangzhou, China.
Phone: +86 20-81561021
Fax: +86 20-81891390
Zip code: 510370
Service Hotline: 1350002099 18664751963
Email: bedford.cn@gmail.com
After-sales service
1. The warranty is limited to the inverter itself. Within 12 months from the date of purchase, the inverter will provide free maintenance services if the product is damaged due to malfunctions caused by the product itself within 12 months from the date of purchase.
2. During the warranty period, if something happens, our company will charge a certain amount of maintenance fee depending on the situation.
A. Failure to strictly follow the "Instruction Manual" or exceed the standard requirements in an environment that does not meet the requirements of the "Instruction Manual".
B. Failure caused by self-repair or modification without permission.
C. Faults caused when the inverter is used for abnormal functions.
D. The inverter is damaged due to incorrect wiring.
E. Damage caused by improper storage, fall or other external factors after purchase.
F. Failures caused by natural disasters such as abnormal voltage, lightning, fire, water mist, metal dust, gas corrosion, earthquakes, storms, or disaster-related causes.
G. Tear off the product identification (such as nameplate, etc.) without authorization; the serial number of the body does not match the warranty card.
3. If you have any questions, please contact the agent or contact our company directly.
4. For machines beyond the warranty period, our company will also provide lifetime paid maintenance services.
